GTPro®
Geothermal Zoning
In Stock

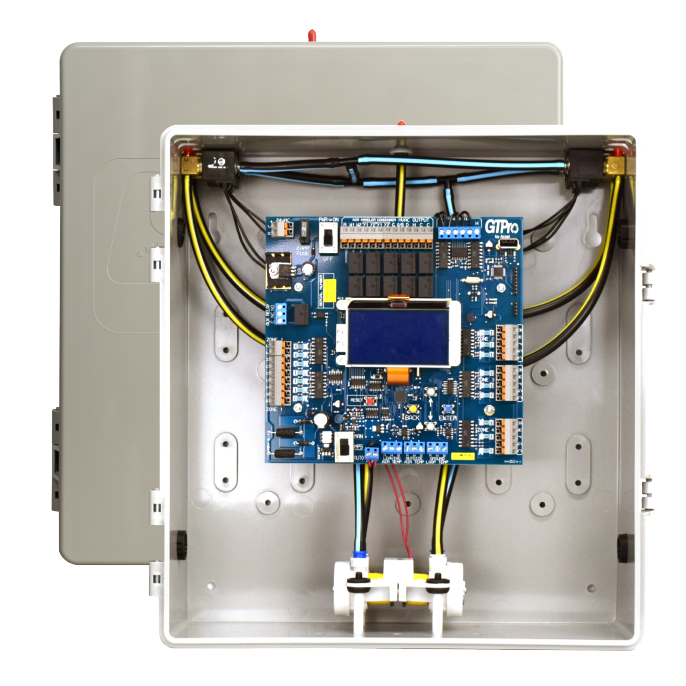

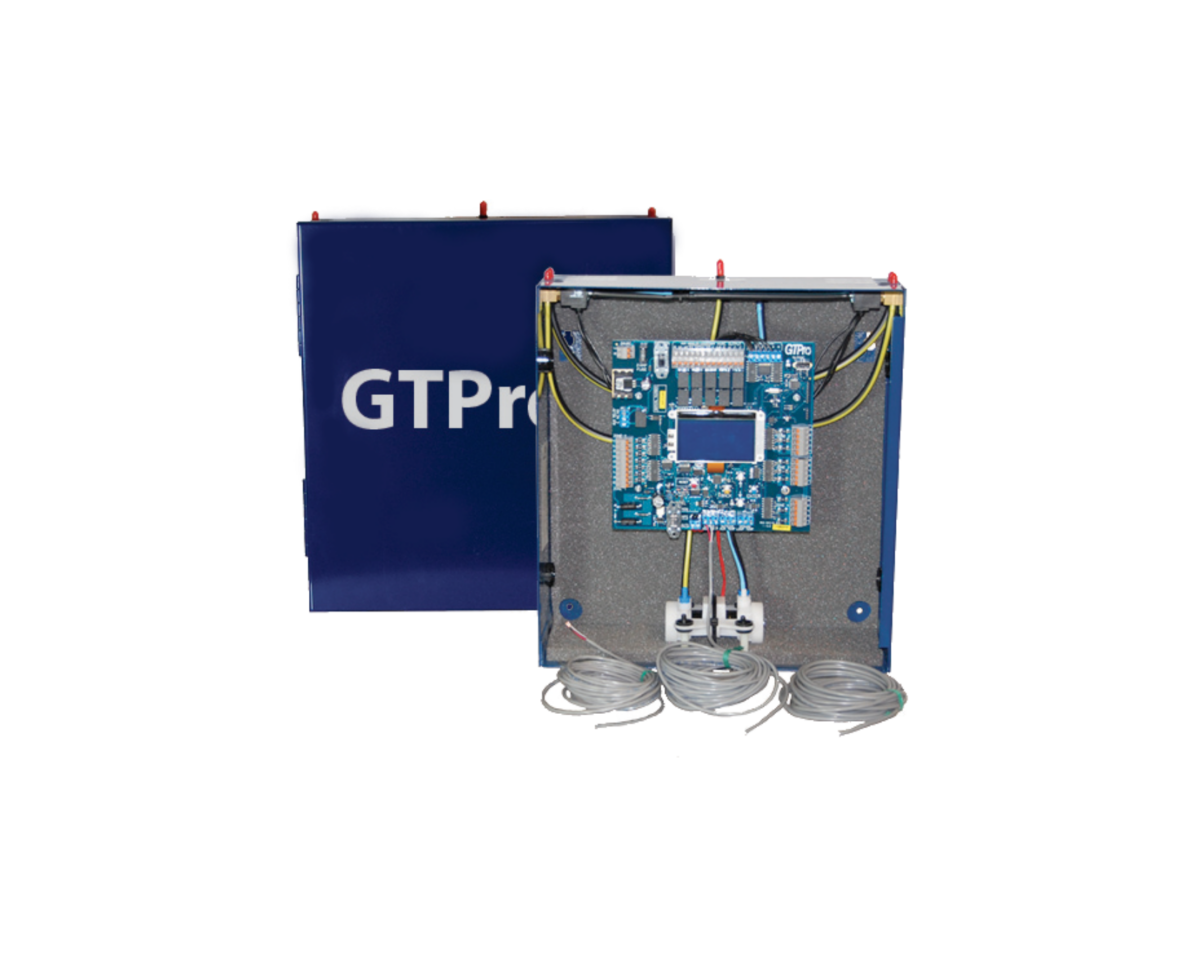

GTPro offers customized comfort control while maximizing the efficiency of geothermal units. It provides built-in controls for several different staging parameters, allowing for more precise management to save time, money, and energy. The software-based technology behind the GTPro is extremely user-friendly.
The ground loop temperature sensor monitors the ground loop temperature ensuring the proper function of the system. The loop monitoring allows for more aggressive staging when the loop temperature starts to reach a critical point. The system will stage up based on the temperature of the ground loop, keeping it at an acceptable level for maximum efficiency.
The GTPro is perfect for both new construction and retrofit applications, combining the most reliable, easiest-to-install zoning systems with the energy efficiency of geothermal units.
| Item ID | Item Description |
|---|---|
| PAN-GTP02 | GTPro® 2-zone panel |
| PAN-GTP03 | GTPro® 3-zone panel |
| PAN-GTP04 | GTPro® 4-zone panel |
APPLICATIONS
In Stock
- Residential & light commercial four zones or less
- Retrofit or new construction
- Single or multi-stage equipment
- Variable speed
- Package geothermal
- Split system geothermal
FEATURES
In Stock
- Ground loop temperature
- Outdoor Air Temperature (OAT) sensor
- Leaving Air Temperature (LAT) sensor
- Programmable low voltage auxiliary relay
- Advanced humidification features
- Optional staging timers
- Customizable staging options
Benefits
Universal Compatibility
The GTPro works with any standard 24-volt system including split geothermal, heat pump, and conventional furnace and air conditioner. This makes the GTPro® perfect for both new construction and retrofit applications.
Custom Programmability
The GTPro is run by software so it allows you to program the system according to a homeowner’s comfort needs. This makes it extremely versatile and gives the homeowner the opportunity to save money while increasing their comfort.
Minimal Bypass Required
By controlling fan speed independently, little or no bypass is required with the GTPro panel. Thus improving the efficiency of the equipment and saving the homeowner on utility bills.
Real-Time Reporting
The GTPro is equipped with an LCD screen allowing you access to real-time reporting of the system’s activities. The USB port allows for system configuration to be completed before installation. This will save time and money on installation.
Versatile Options
The GTPro can be equipped with an optional solenoid to control the humidifier bypass damper. There is also a built-in fossil fuel kit and advanced dual-fuel technology included in the panel’s software, eliminating the need for additional controls. These options make the panel the most cost-effective, efficient option to zone any home or office.
Frequently Asked Questions
The third sensor is a temperature sensor which can be assigned for multiple uses but is intended for loop temperature monitoring.
You are now able to make staging decisions based on loop temp and your jobs needs.
The GTPro not only has the addition of the third sensor but offers far more programming options to allow you to have more control over how you want the staging to behave whether it be based on time, loop temp or a combination of both.
