Arzel Zoning

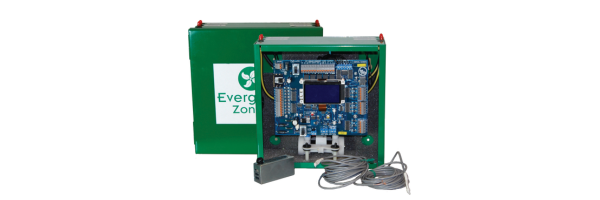

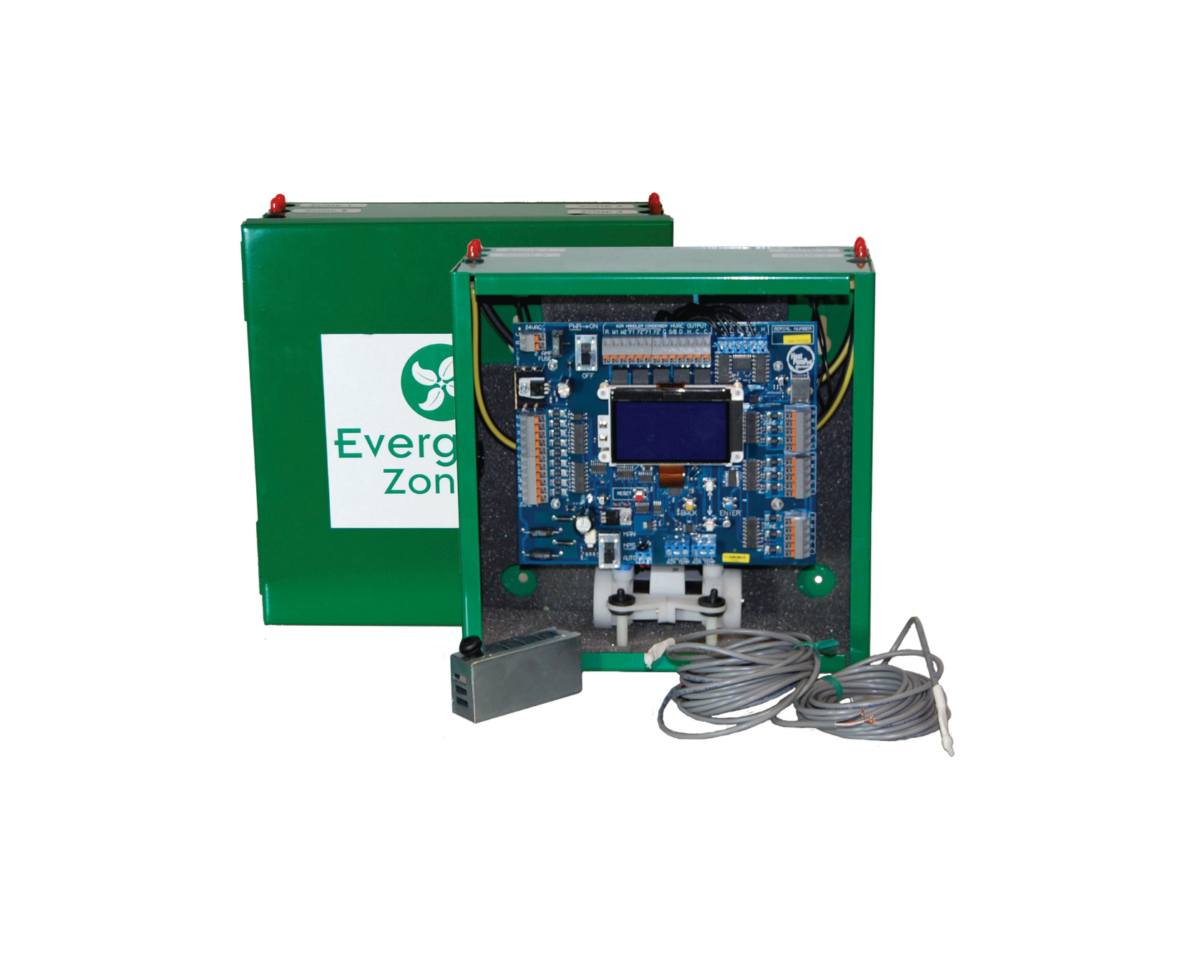

Evergreen Zoning is the first retrofit, non-proprietary zone control system capable of controlling blower speed based upon the size of each zone. It uses HeatPumPro technology and features a highly efficient multi-speed Evergreen ECM motor. It is made to work with Evergreen motors with economical solutions and can be sold either with the motor as a kit or separately.
| Item ID | Item Description |
|---|---|
| PAN-EHPP2 | Evergreen zoning panel - 2 zones |
| PAN-EHPP3 | Evergreen zoning panel - 3 zones |
| PAN-EHPP4 | Evergreen zoning panel - 4 zones |
| EVG-1HPP2 | Kit: 2-zone panel + 1 hp motor |
| EVG-1HPP3 | Kit: 3-zone panel + 1 hp motor |
| EVG-1HPP4 | Kit: 4-zone panel + 1 hp motor |
| EVG-1/2HPP2 | Kit: 2-zone panel + 1/2 hp motor |
| EVG-1/2HPP3 | Kit: 3-zone panel + 1/2 hp motor |
| EVG-1/2HPP4 | Kit: 4-zone panel + 1/2 hp motor |
| MOT-EVGR1 | Evergreen 1 hp motor |
| MOT-EVG.5 | Evergreen 1/2 hp motor |

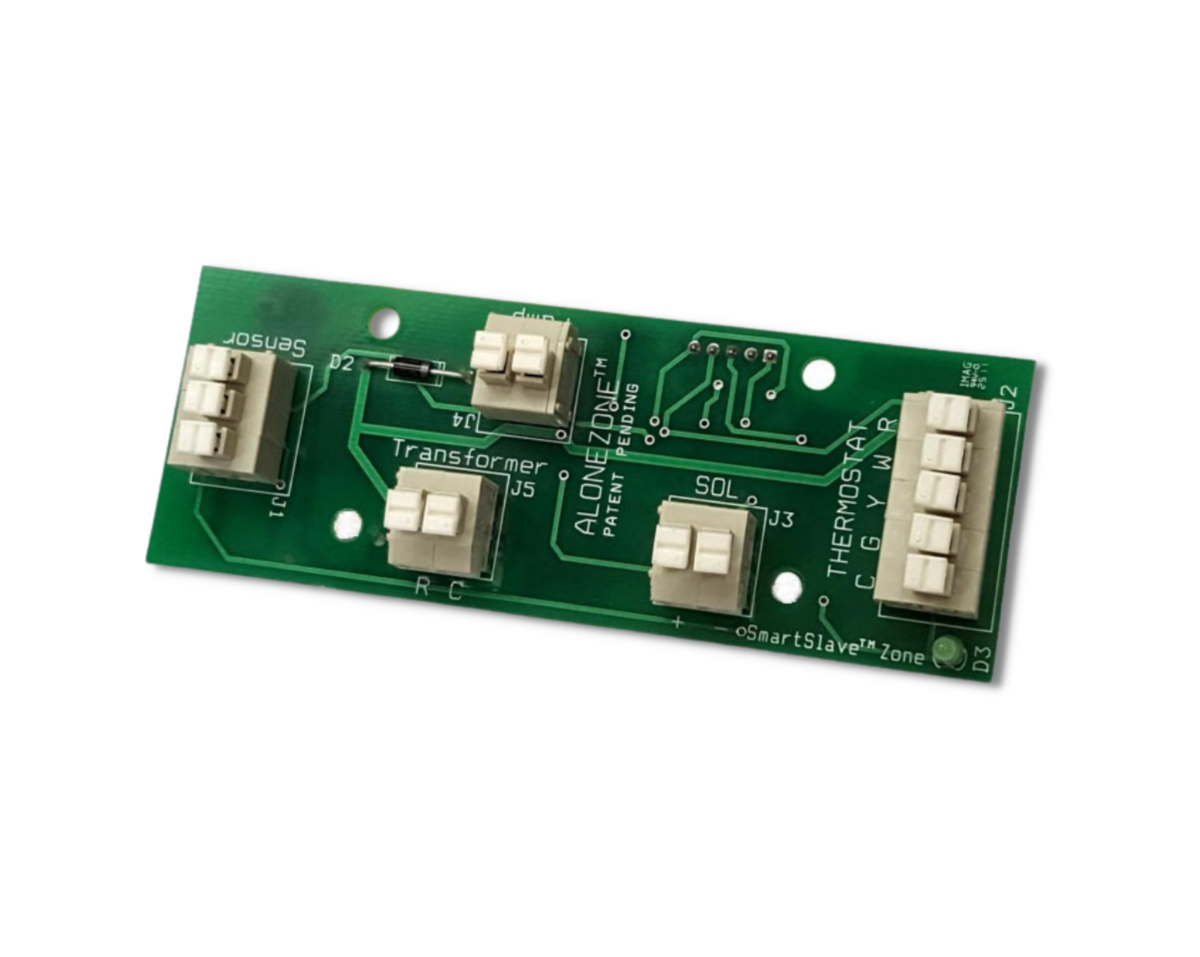

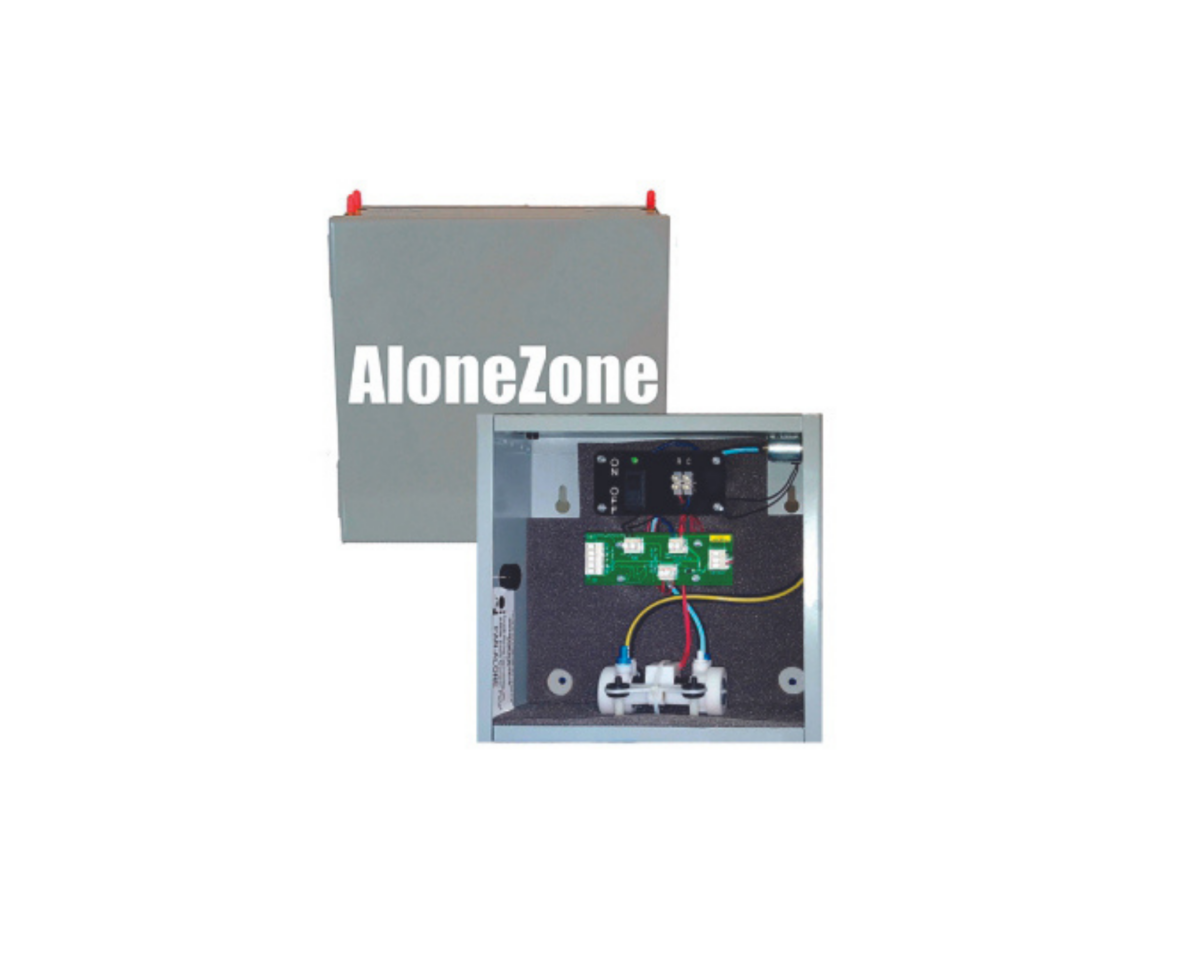

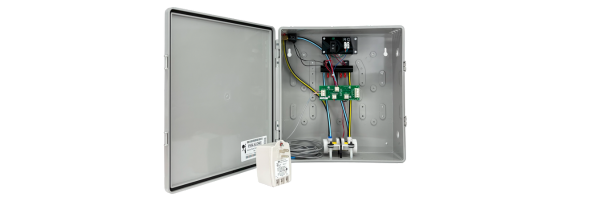

The AloneZone limits temperature and airflow in areas that tend to over condition but do not require full control of the heating and cooling equipment.
| Item ID | Item Description |
|---|---|
| PAN-ALONE | Alone Zone |

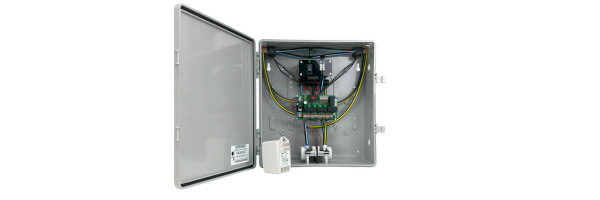

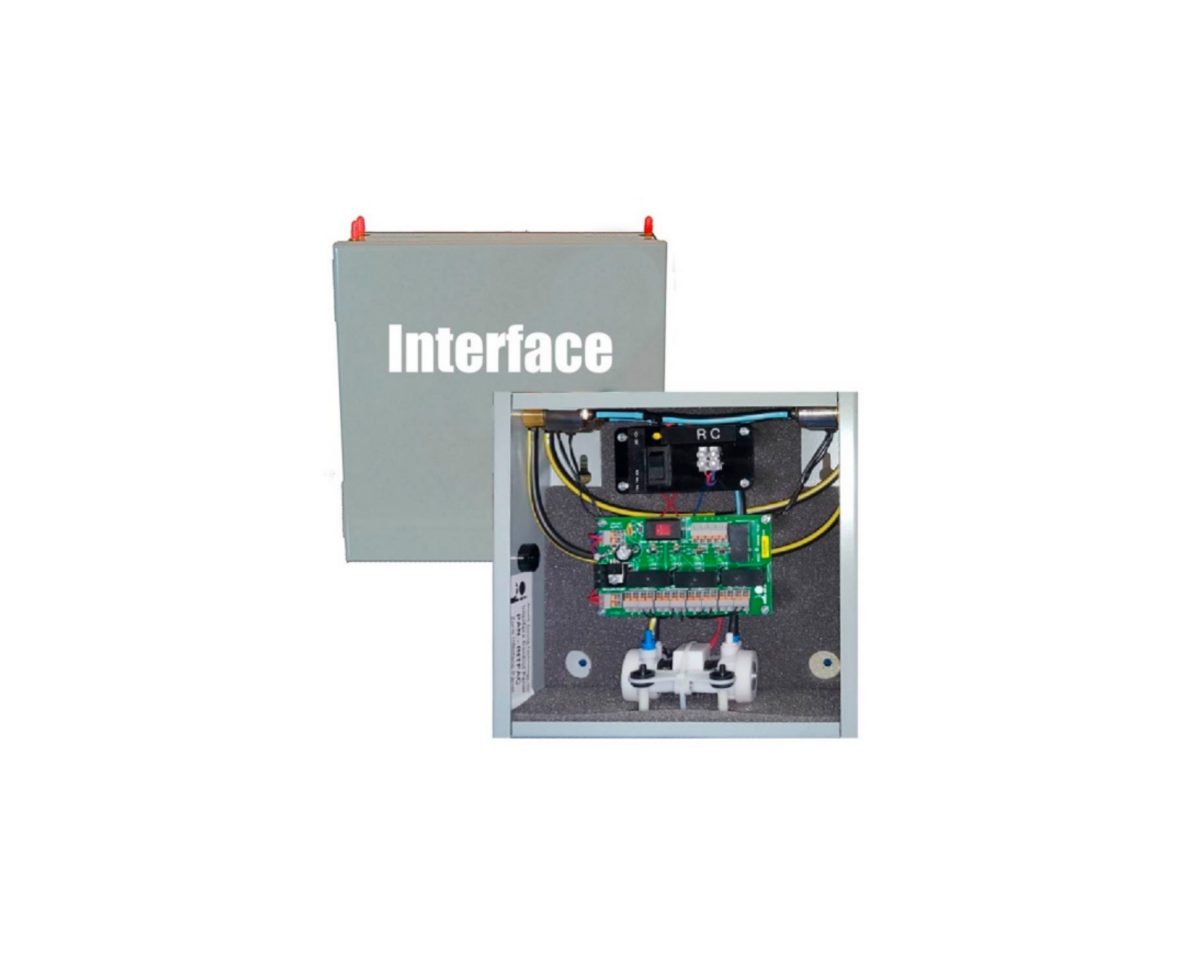

The Zone Interface Control provides an interface for applying the special Arzel dampers with proprietary zone controls such as Lennox Harmony™️ and WaterFurnace Intellizone™️.
| Item ID | Item Description |
|---|---|
| PAN-INTFAC | Zone Interface panel (Harmony, Waterfurn.) |

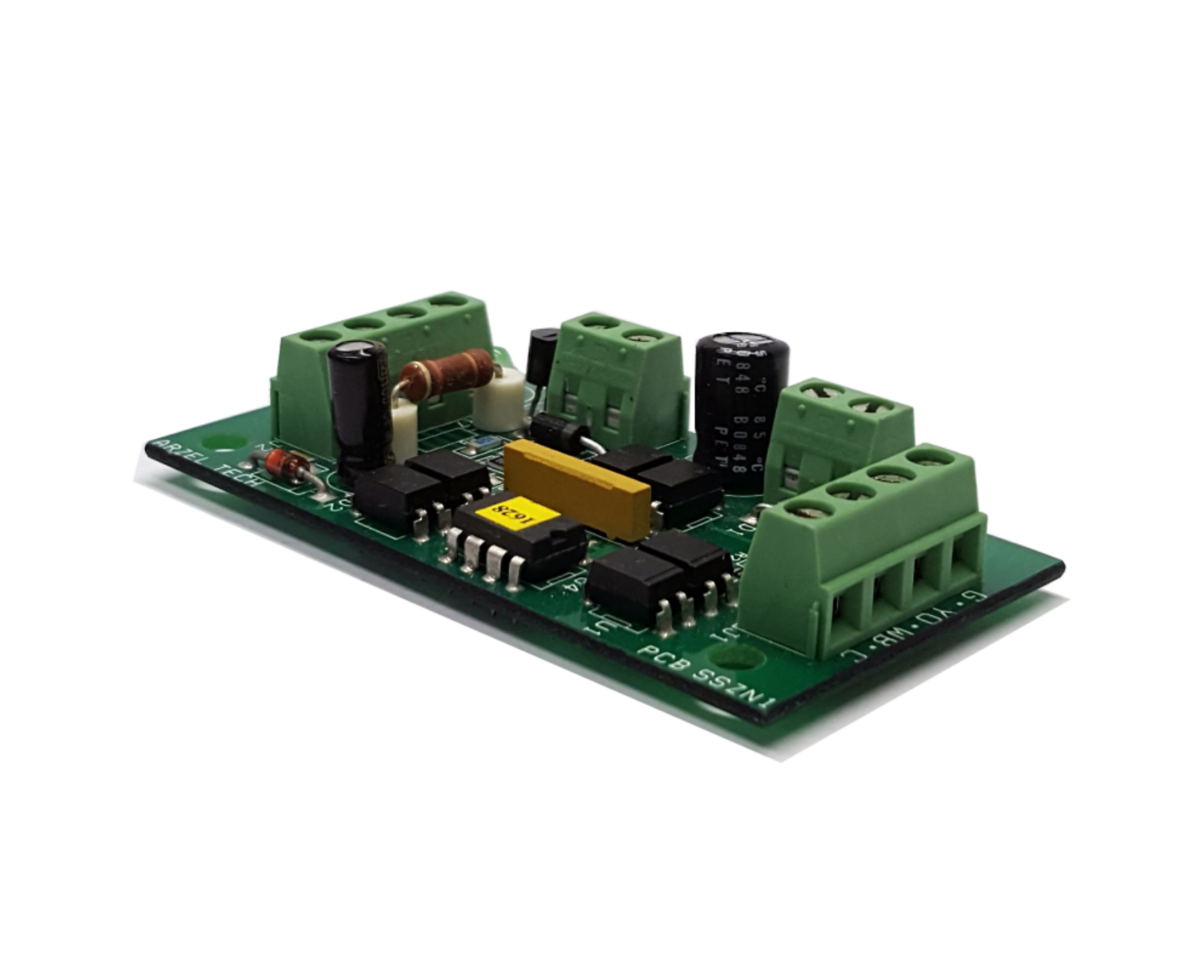

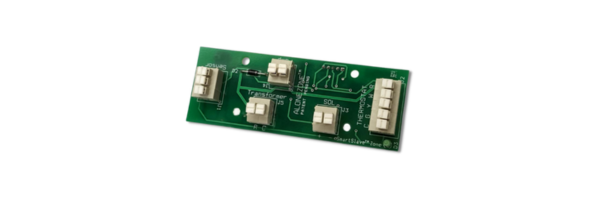

A Smart Zone allows you to add a zone or zones to a panel where control of the equipment is not required. Unlimited Smart Zones can be added. Smart Zones cannot turn on or control the equipment.
| Item ID | Item Description |
|---|---|
| PAN-SSZN1 | Smart Zone (factory installed) |
| PAN-SLVKT | Smart Zone Kit (field install with PAN-SOLO4 solenoid) |
| PAN-SLVKTH | Smart Zone Kit (field install with PAN-SOLO5 solenoid) |

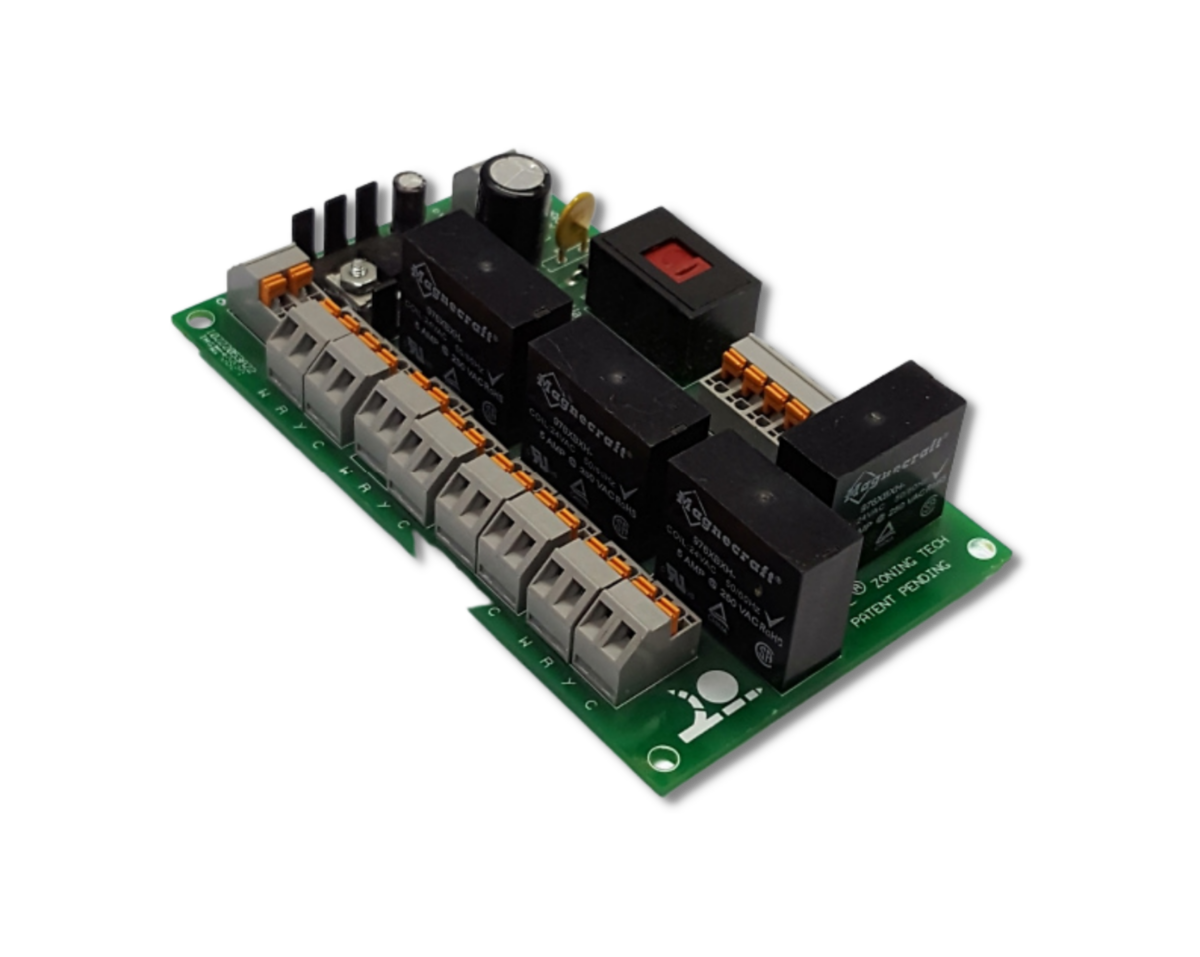

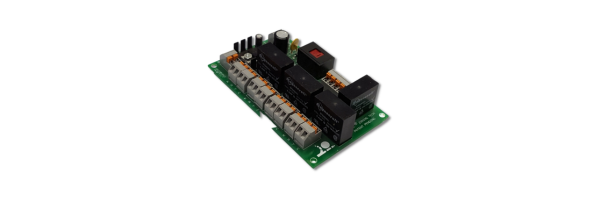

The ZVI board can be factory installed in panels to combine forced air zoning and hydronic zoning allowing the use of a single thermostat in each zone.
| Item ID | Item Description |
|---|---|
| PCB-ZVIBD | Zone Valve Control circuit board |

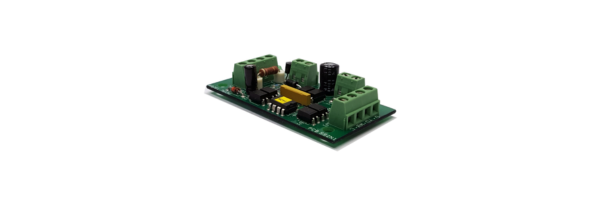

The FACT System lets you decide how much fresh air to bring in and under what conditions. Use an enthalpy control, outdoor thermostat, or a timer to limit when outdoor air is brought in.
| Item ID | Item Description |
|---|---|
| PAN-FRESH | Fresh Air Control (factory install) |
| STK-FACT6 | 6" round FACT damper |
| STK-FACT8 | 8" round FACT damper |
| STK-FACT10 | 10" round FACT damper |

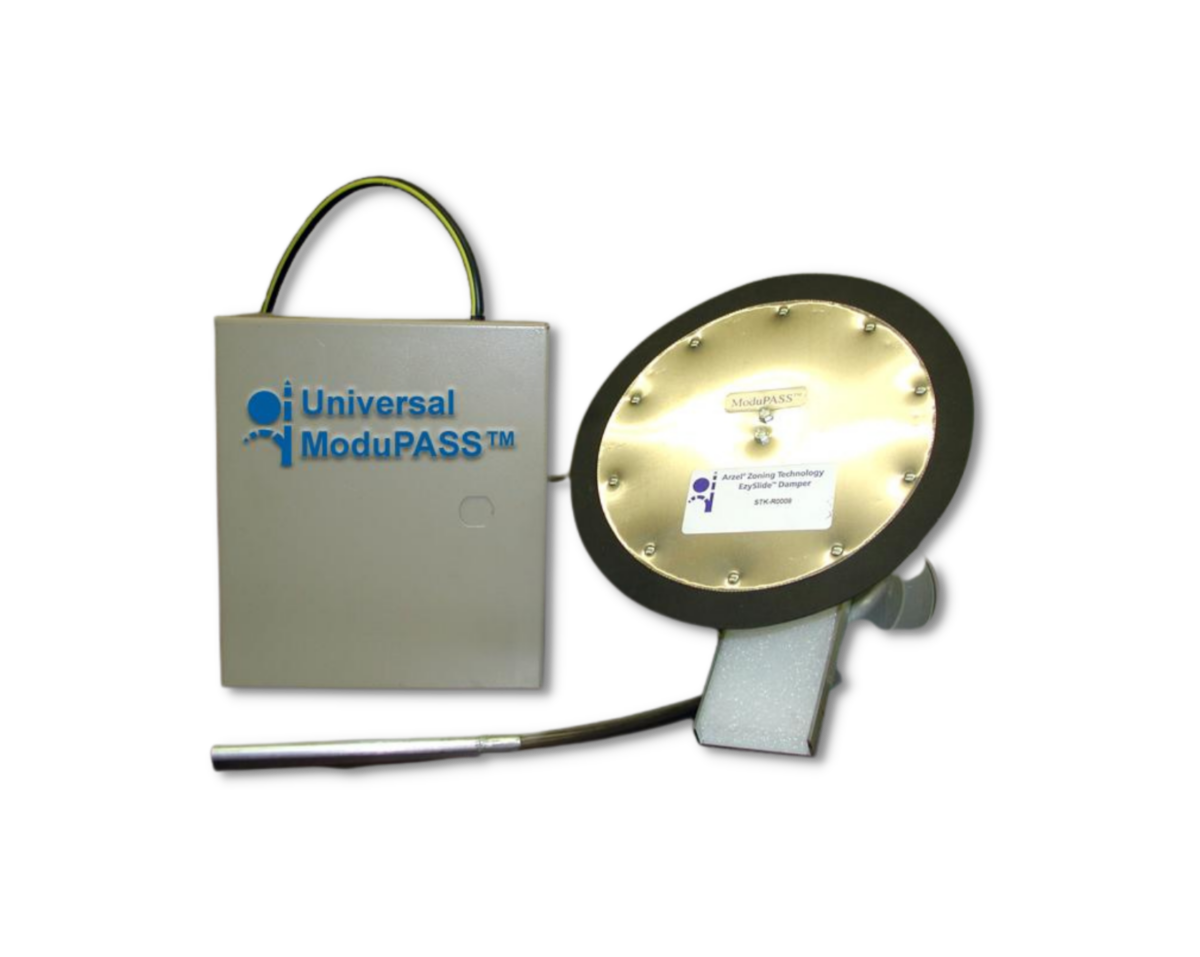

The Universal ModuPass® panel monitors static pressure and modulates a damper to maintain a maximum acceptable static pressure in the supply trunk. View ModuPass® dampers on our dampers page.
| Item ID | Item Description |
|---|---|
| PAN-UNIPAS | Universal ModuPass panel |
This training session covers Arzel Zoning panels, dampers, and other components. Learn about specialty panels for custom applications as well.
